Refined scalloped wave

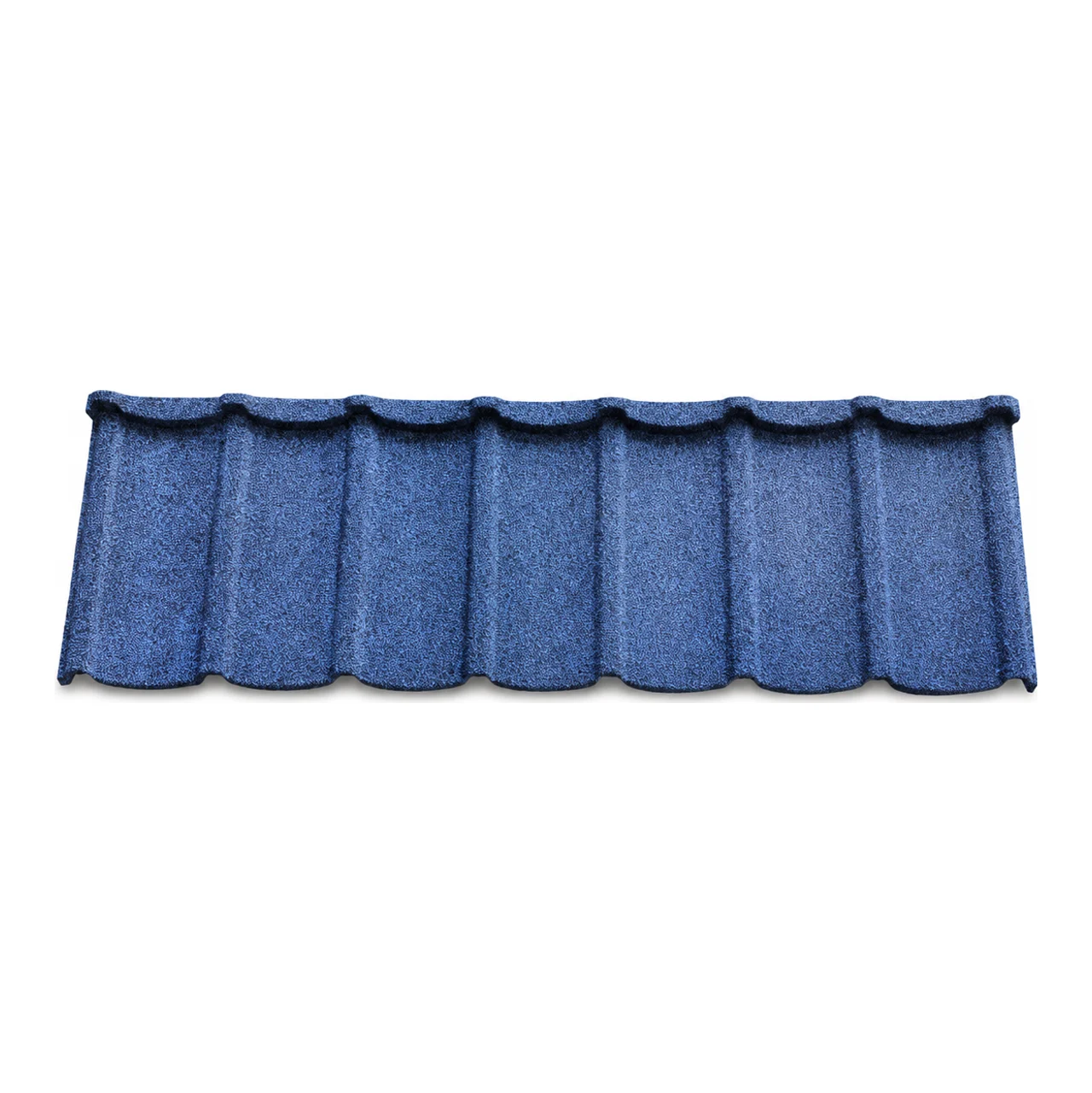

Tudor Tile
Tudor Tile features a refined curved profile with evenly spaced rounded waves, creating a clean and elegant roof appearance. Its stone-coated metal construction combines traditional architectural styling with lightweight performance, corrosion resistance and long-term durability. It is suitable for villas, residential buildings, commercial properties and roof renovation projects.
- Tile size
- 1340 × 420 mm
- Coverage
- 2.08 pcs/m²
- Base material
- Aluminum-zinc coated steel sheet
Product Overview
Tudor Tile features a refined curved profile with evenly spaced rounded waves, creating a clean and elegant roof appearance. Its stone-coated metal construction combines traditional architectural styling with lightweight performance, corrosion resistance and long-term durability. It is suitable for villas, residential buildings, commercial properties and roof renovation projects.
Short description
Tudor Tile is a lightweight stone-coated metal roofing tile with an elegant rounded-wave profile. Manufactured from aluminum-zinc coated steel and finished with natural stone granules, it provides attractive roof aesthetics, reliable weather resistance and efficient installation.
Colours
Available colours
Every profile runs in our full colour range. The swatches below are the finishes we hold stock of for this profile — other RAL and custom colours can be run to order with a minimum batch.

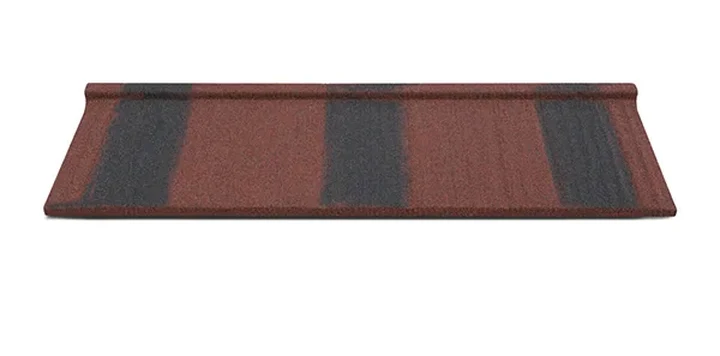

Rust Red

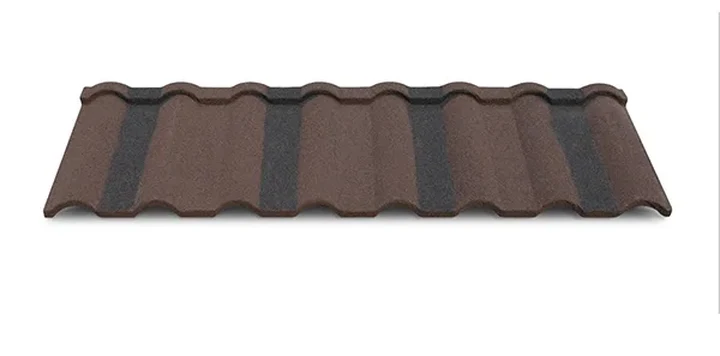

Terracotta

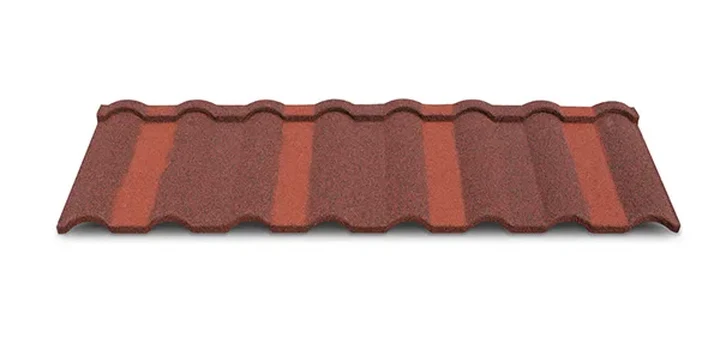

Terra Orange
JH01
JH02
JH03
JH04
JH05
JH06
JH07
JH08
JH09
JH10
JH11
JH12
JH13
JH14
JH15
JH16
Colour codes
The JH01–JH16 chips are our standard stone-coat colour range. Slight variation between batches is normal for natural stone granules. Order a free sample chip before committing to a full roof.Technical data
Specifications
| Tile Size | 1340 × 420 mm |
|---|---|
| Installed Size | 1290 × 370 mm |
| Coverage | 2.08 pcs/m² |
| Base Material | Aluminum-zinc coated steel sheet |
| Surface | Natural colored stone granules |
| Application | Villas, residences, commercial buildings and roof renovation |
Tested performance
Eight routine performance tests.
Every batch goes through the same eight checks. The figures below come from tests on our standard stone-coated panels at the China National Building Material Test Centre.
- 24 hWater resistance — no change after immersion
- 90 ℃ × 5 hHeat resistance — no change after oven ageing
- −40 ℃ × 24 hCold resistance — no change after freezing
- 48 hAlkali resistance — no change after alkali bath
- 48 hAcid resistance — no change after acid bath
- 240 hSalt spray — no change in salt spray chamber
- 20 cyclesFreeze–thaw — no change after cycling
- 1000 hArtificial weathering — no change in weatherometer
Warranty
50-year limited warranty on the coated steel substrate, 15 years against colour fade, backed by the same test reports on request.
Advantages
Key Features
Elegant Curved Profile
The regular rounded waves create clear roof lines and a balanced three-dimensional appearance.
Lightweight and Strong
The metal substrate reduces the load on the roof structure while maintaining dependable strength and stability.
Corrosion Resistance
The aluminum-zinc coated steel base and protective coating help resist moisture, rust and long-term outdoor exposure.
Durable Stone-Coated Surface
Natural stone granules provide a textured decorative finish and help improve weather resistance and color stability.
Wind and Weather Resistance
The overlapping installation structure helps the roof withstand rain, wind, sunlight and temperature changes.
Efficient Installation
Large-format panels cover more roof area than traditional individual tiles, helping reduce installation time and labor costs.
Multiple Color Options
Tudor Tile can be supplied in sky blue, smoky gray, black, terracotta, wine red, brown black and other colors shown in the brochure.
