Elegant rounded wave

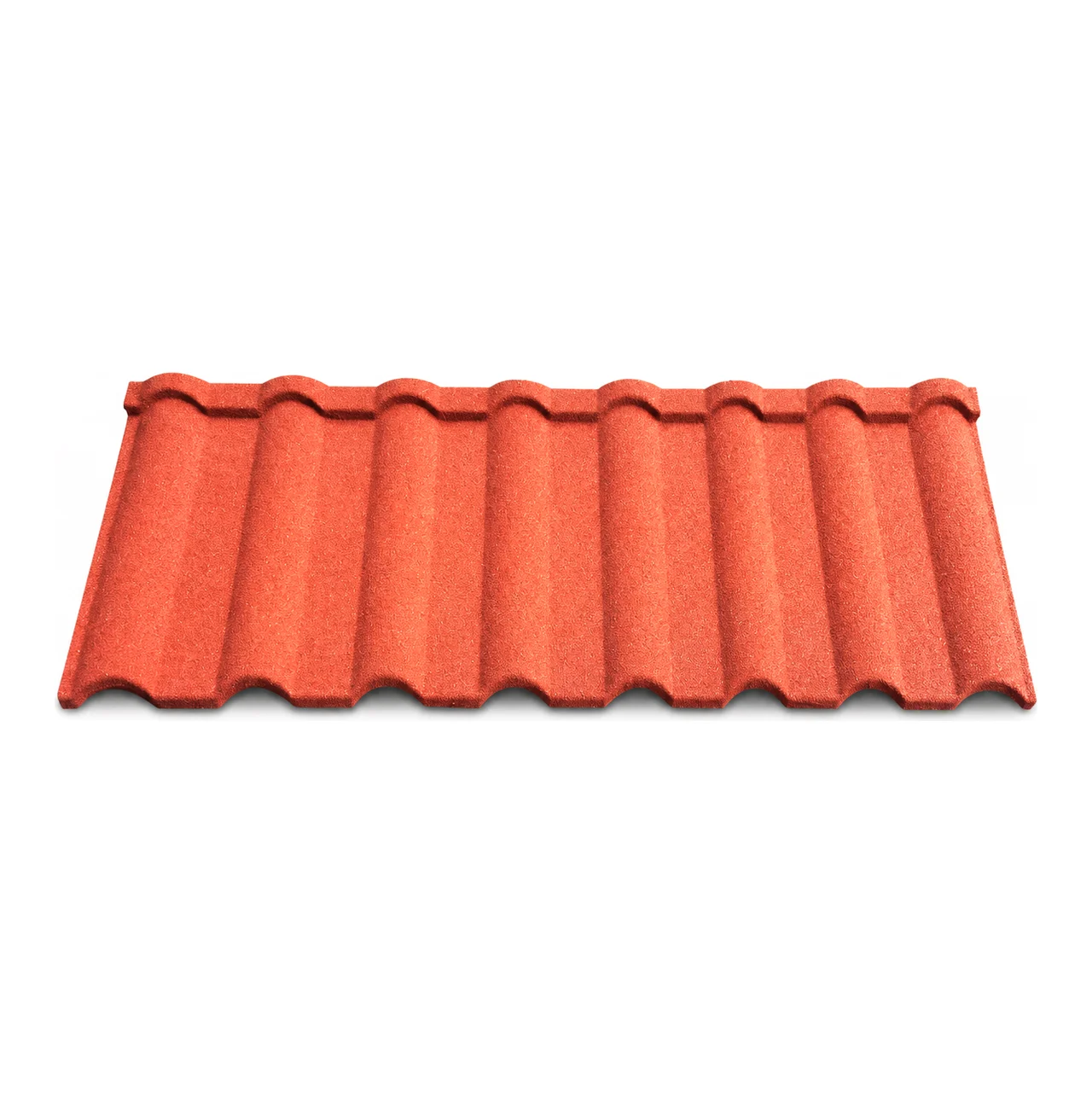

Milano Tile
Milano Tile features a smooth, rounded wave profile with a clean and elegant appearance. Its broad, regular curves create a strong three-dimensional roof effect, making it suitable for villas, residences, commercial buildings and roof renovation projects. The stone-coated metal structure combines decorative appeal with lightweight performance and reliable durability.
- Tile size
- 1340 × 420 mm
- Coverage
- 2.08 pcs/m²
- Base material
- Aluminum-zinc coated steel sheet
Product Overview
Milano Tile features a smooth, rounded wave profile with a clean and elegant appearance. Its broad, regular curves create a strong three-dimensional roof effect, making it suitable for villas, residences, commercial buildings and roof renovation projects. The stone-coated metal structure combines decorative appeal with lightweight performance and reliable durability.
Short description
Milano Tile is a lightweight stone-coated metal roofing tile with a smooth and elegant wave profile. Made from aluminum-zinc coated steel and finished with natural stone granules, it offers attractive roof aesthetics, corrosion resistance and efficient installation.
Colours
Available colours
Every profile runs in our full colour range. The swatches below are the finishes we hold stock of for this profile — other RAL and custom colours can be run to order with a minimum batch.

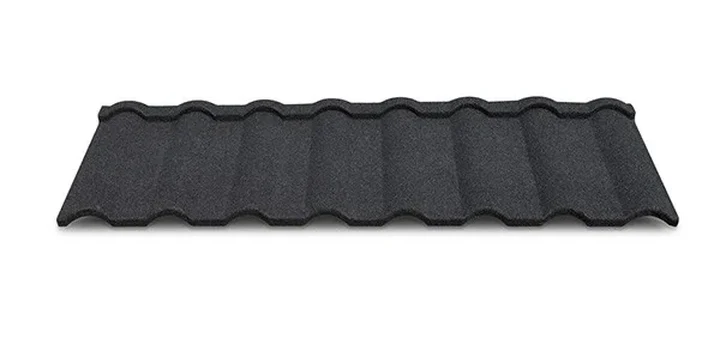

Charcoal

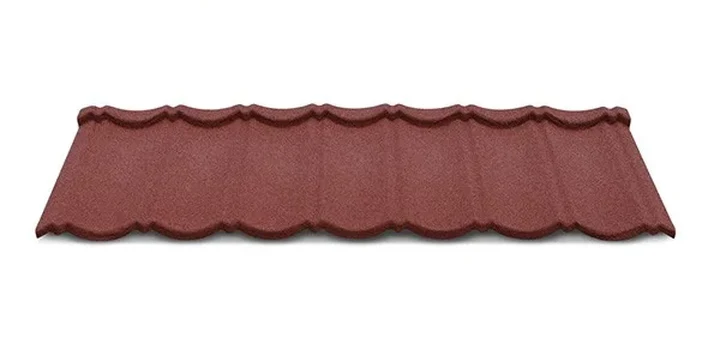

Terracotta

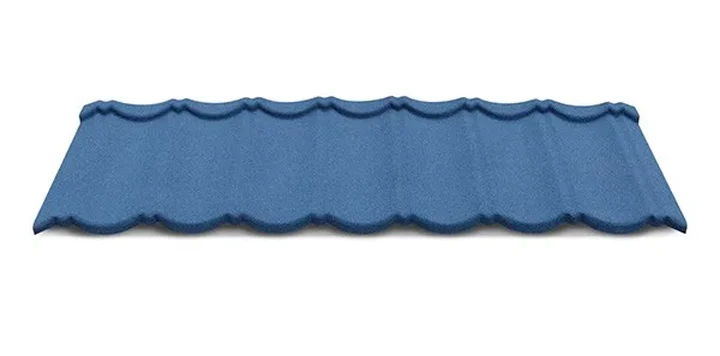

Ocean Blue

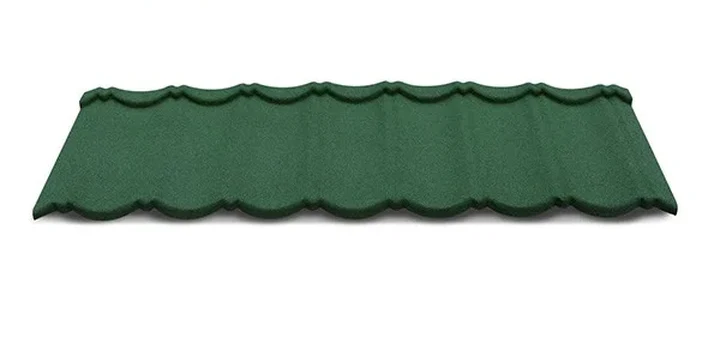

Forest Green

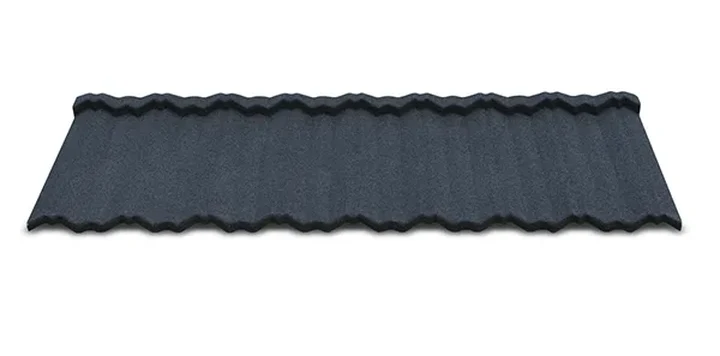

Graphite
Midnight

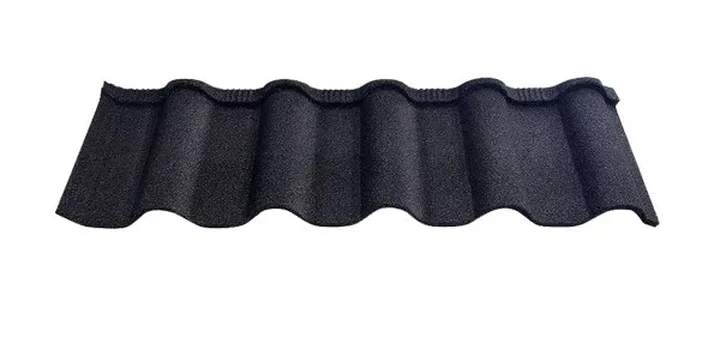

Slate Grey
JH01
JH02
JH03
JH04
JH05
JH06
JH07
JH08
JH09
JH10
JH11
JH12
JH13
JH14
JH15
JH16
Colour codes
The JH01–JH16 chips are our standard stone-coat colour range. Slight variation between batches is normal for natural stone granules. Order a free sample chip before committing to a full roof.Technical data
Specifications
| Tile Size | 1340 × 420 mm |
|---|---|
| Installed Size | 1290 × 370 mm |
| Coverage | 2.08 pcs/m² |
| Base Material | Aluminum-zinc coated steel sheet |
| Surface | Natural colored stone granules |
| Application | Villas, residences, commercial buildings and roof renovation |
Tested performance
Eight routine performance tests.
Every batch goes through the same eight checks. The figures below come from tests on our standard stone-coated panels at the China National Building Material Test Centre.
- 24 hWater resistance — no change after immersion
- 90 ℃ × 5 hHeat resistance — no change after oven ageing
- −40 ℃ × 24 hCold resistance — no change after freezing
- 48 hAlkali resistance — no change after alkali bath
- 48 hAcid resistance — no change after acid bath
- 240 hSalt spray — no change in salt spray chamber
- 20 cyclesFreeze–thaw — no change after cycling
- 1000 hArtificial weathering — no change in weatherometer
Warranty
50-year limited warranty on the coated steel substrate, 15 years against colour fade, backed by the same test reports on request.
Advantages
Key Features
Elegant Wave Profile
The wide and smooth curved design creates a neat, balanced roof appearance with clear three-dimensional layers.
Highly Decorative
Bright colors and rich surface textures can be selected to match different architectural styles and design requirements.
Lightweight and Strong
The metal base reduces the load on the roof structure while providing dependable strength and stability.
Corrosion Resistance
The aluminum-zinc coated steel substrate and protective coating help resist moisture, rust and long-term outdoor exposure.
Weather-Resistant Surface
The natural stone granule finish helps improve resistance to rain, sunlight and changing weather conditions.
Efficient Installation
Large-format panels cover more roof area, helping reduce installation time and labor costs.
Multiple Color Options
Milano Tile is available in terracotta, wine red, beige red, coffee brown, smoky gray, black and other colors shown in the brochure.
