Classic curved profile

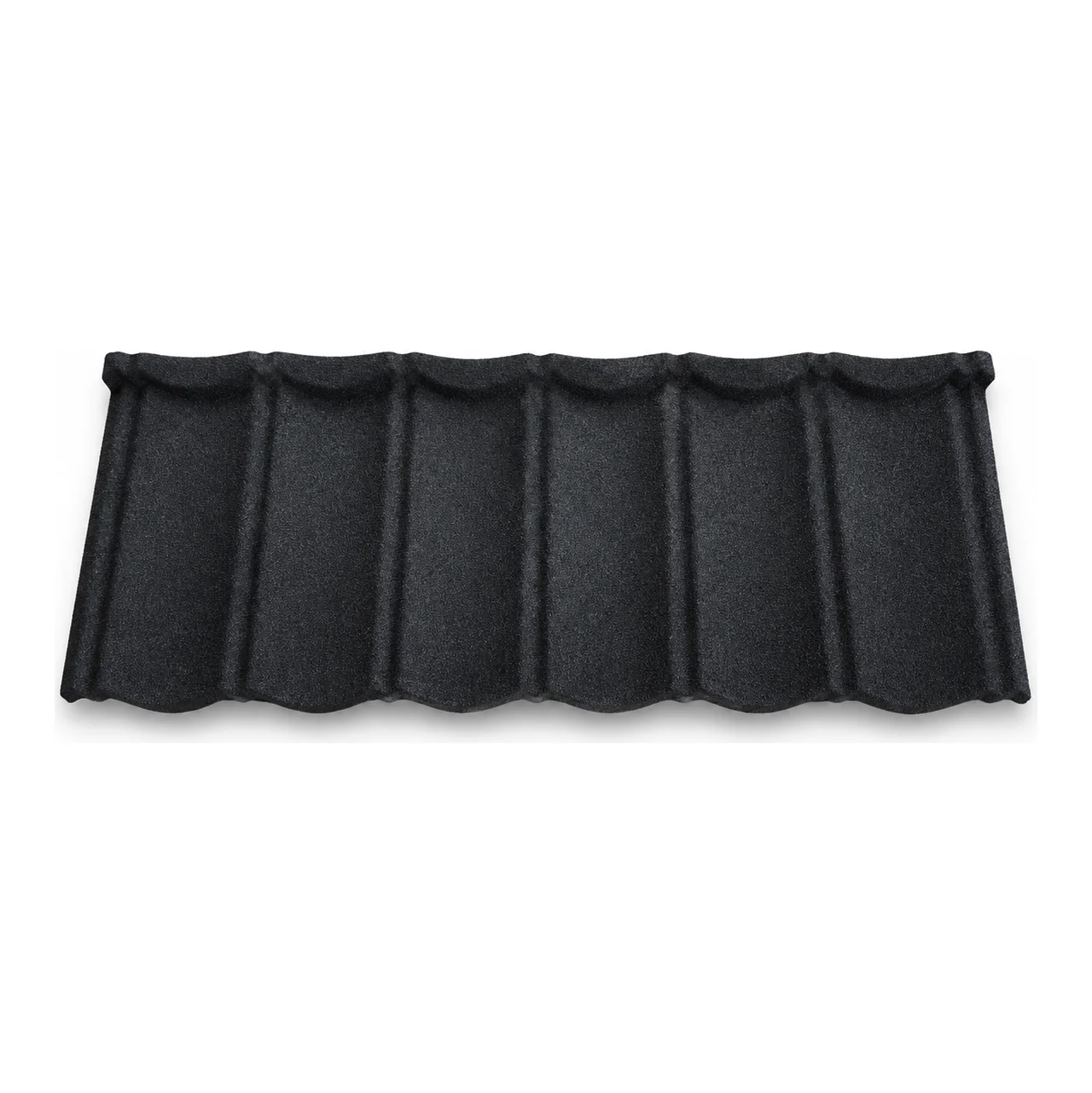

Bond Tile

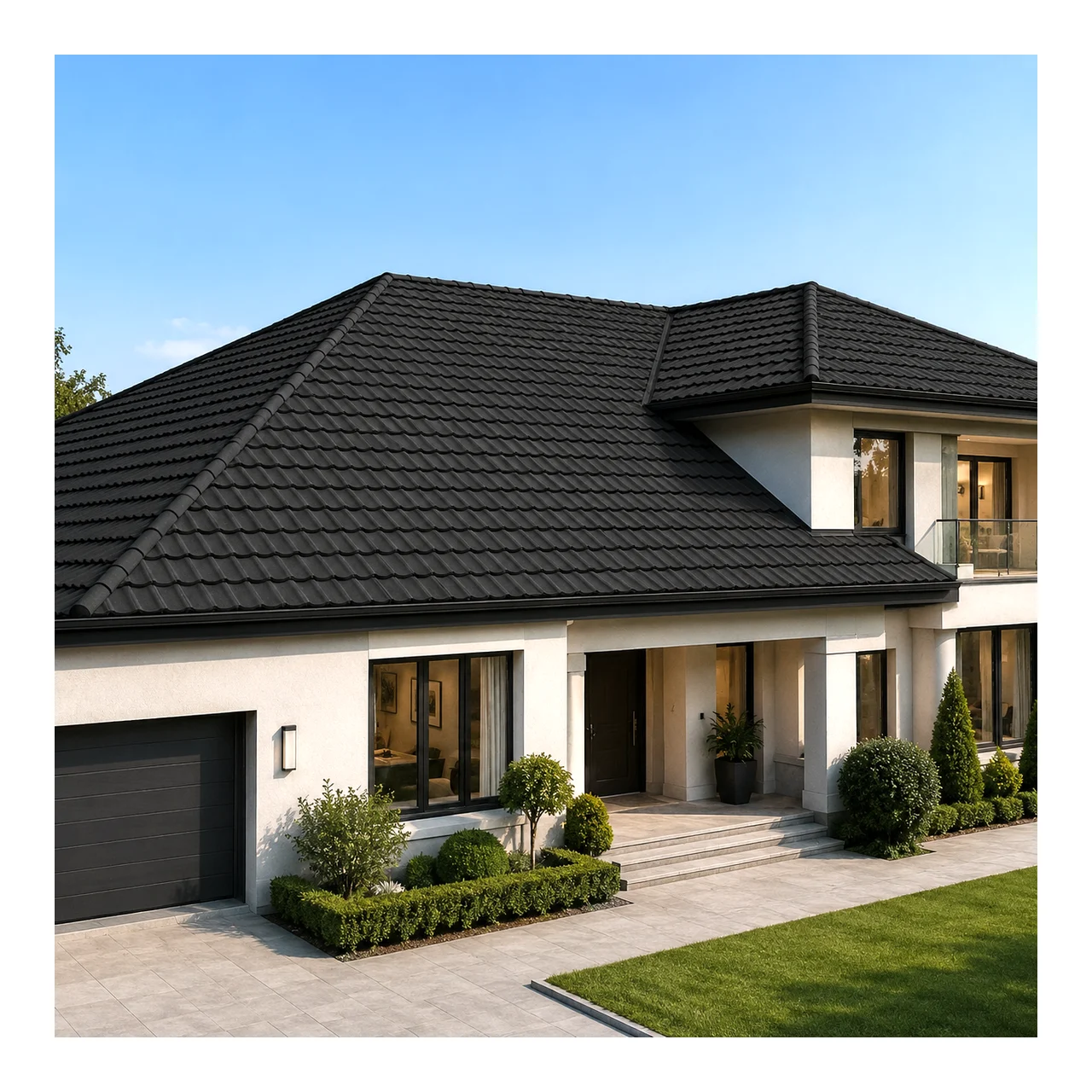

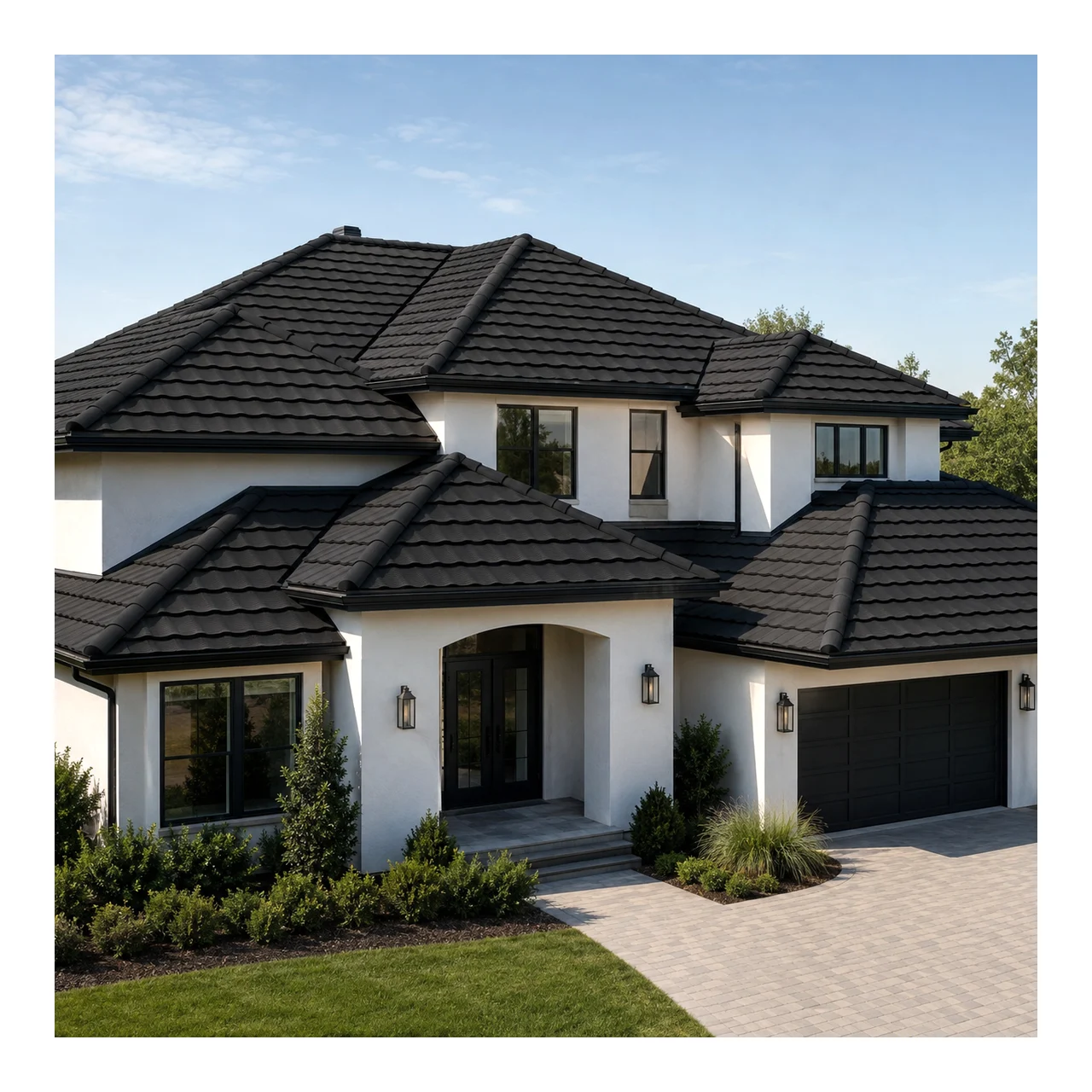

Bond Tile combines the traditional curved appearance of roof tiles with the strength and lightweight performance of stone-coated metal roofing. Its smooth wave profile creates a neat, layered roof finish, making it suitable for villas, residential buildings, commercial properties and renovation projects.
- Tile size
- 1340 × 420 mm
- Coverage
- 2.08 pcs/m²
- Base material
- Aluminum-zinc coated steel sheet
Product Overview
Bond Tile combines the traditional curved appearance of roof tiles with the strength and lightweight performance of stone-coated metal roofing. Its smooth wave profile creates a neat, layered roof finish, making it suitable for villas, residential buildings, commercial properties and renovation projects.
Short description
Bond Tile is a lightweight stone-coated metal roofing tile featuring a classic curved profile, durable aluminum-zinc steel construction and a weather-resistant stone granule surface. It is ideal for villas, residential buildings and roof renovation projects.
Colours
Available colours
Every profile runs in our full colour range. The swatches below are the finishes we hold stock of for this profile — other RAL and custom colours can be run to order with a minimum batch.

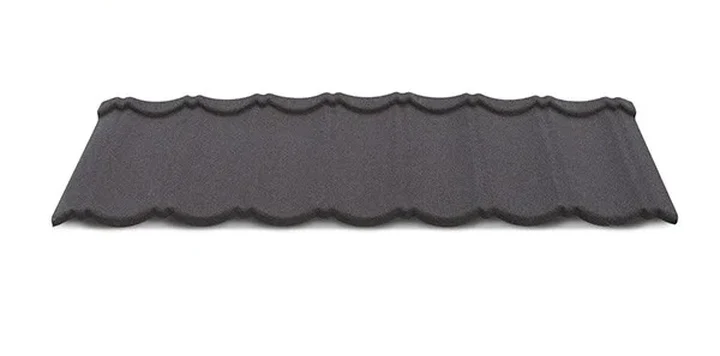

Charcoal

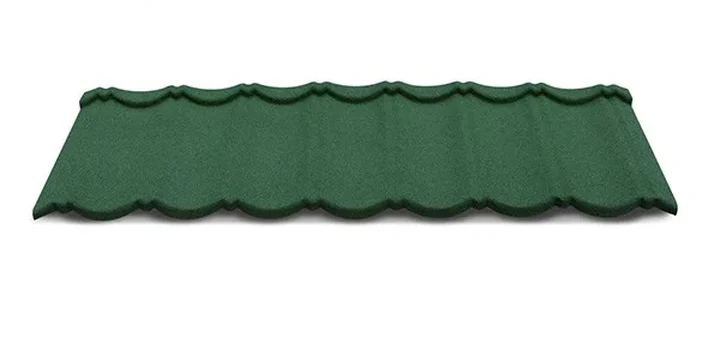

Forest Green

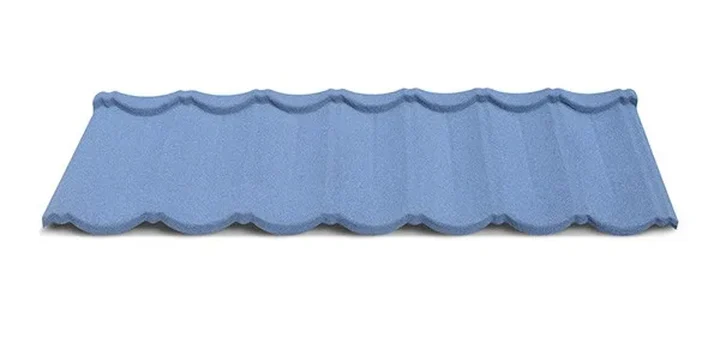

Sky Blue

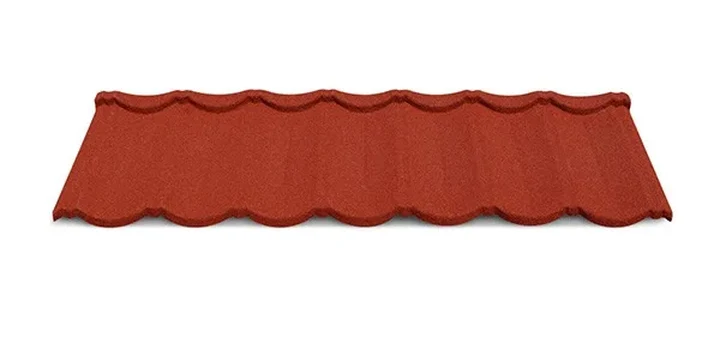

Terra Red

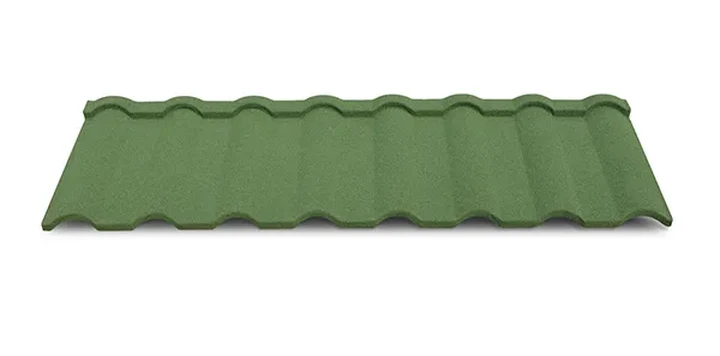

Moss Green

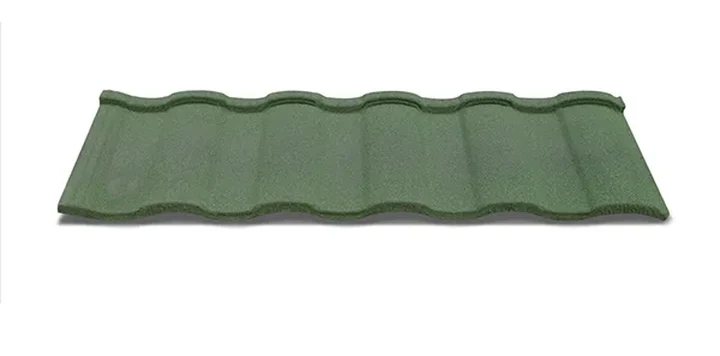

Rust Red
JH01
JH02
JH03
JH04
JH05
JH06
JH07
JH08
JH09
JH10
JH11
JH12
JH13
JH14
JH15
JH16
Colour codes
The JH01–JH16 chips are our standard stone-coat colour range. Slight variation between batches is normal for natural stone granules. Order a free sample chip before committing to a full roof.Technical data
Specifications
| Tile Size | 1340 × 420 mm |
|---|---|
| Installed Size | 1290 × 370 mm |
| Coverage | 2.08 pcs/m² |
| Surface | Natural colored stone granules |
| Base Material | Aluminum-zinc coated steel sheet |
| Application | Villas, residences and commercial buildings |
Tested performance
Eight routine performance tests.
Every batch goes through the same eight checks. The figures below come from tests on our standard stone-coated panels at the China National Building Material Test Centre.
- 24 hWater resistance — no change after immersion
- 90 ℃ × 5 hHeat resistance — no change after oven ageing
- −40 ℃ × 24 hCold resistance — no change after freezing
- 48 hAlkali resistance — no change after alkali bath
- 48 hAcid resistance — no change after acid bath
- 240 hSalt spray — no change in salt spray chamber
- 20 cyclesFreeze–thaw — no change after cycling
- 1000 hArtificial weathering — no change in weatherometer
Warranty
50-year limited warranty on the coated steel substrate, 15 years against colour fade, backed by the same test reports on request.
Advantages
Key Features
Classic Curved Profile
The rounded wave design creates a traditional roof appearance with clear, uniform layers.
Lightweight and Strong
The metal base reduces roof load while maintaining good structural strength.
Corrosion Resistance
The aluminum-zinc coated steel base and protective surface layers help resist moisture, rust and harsh weather.
Quick Installation
Large tile panels cover more roof area, helping reduce installation time and construction costs.
Durable Stone-Coated Surface
Natural stone granules provide a textured appearance while improving weather resistance and long-term color stability.
Multiple Color Options
Available in terracotta, wine red, brown black, beige red, coffee brown, black red, khaki, forest green, sky blue, black and other colors shown in the brochure.
