Staggered rectangular profile

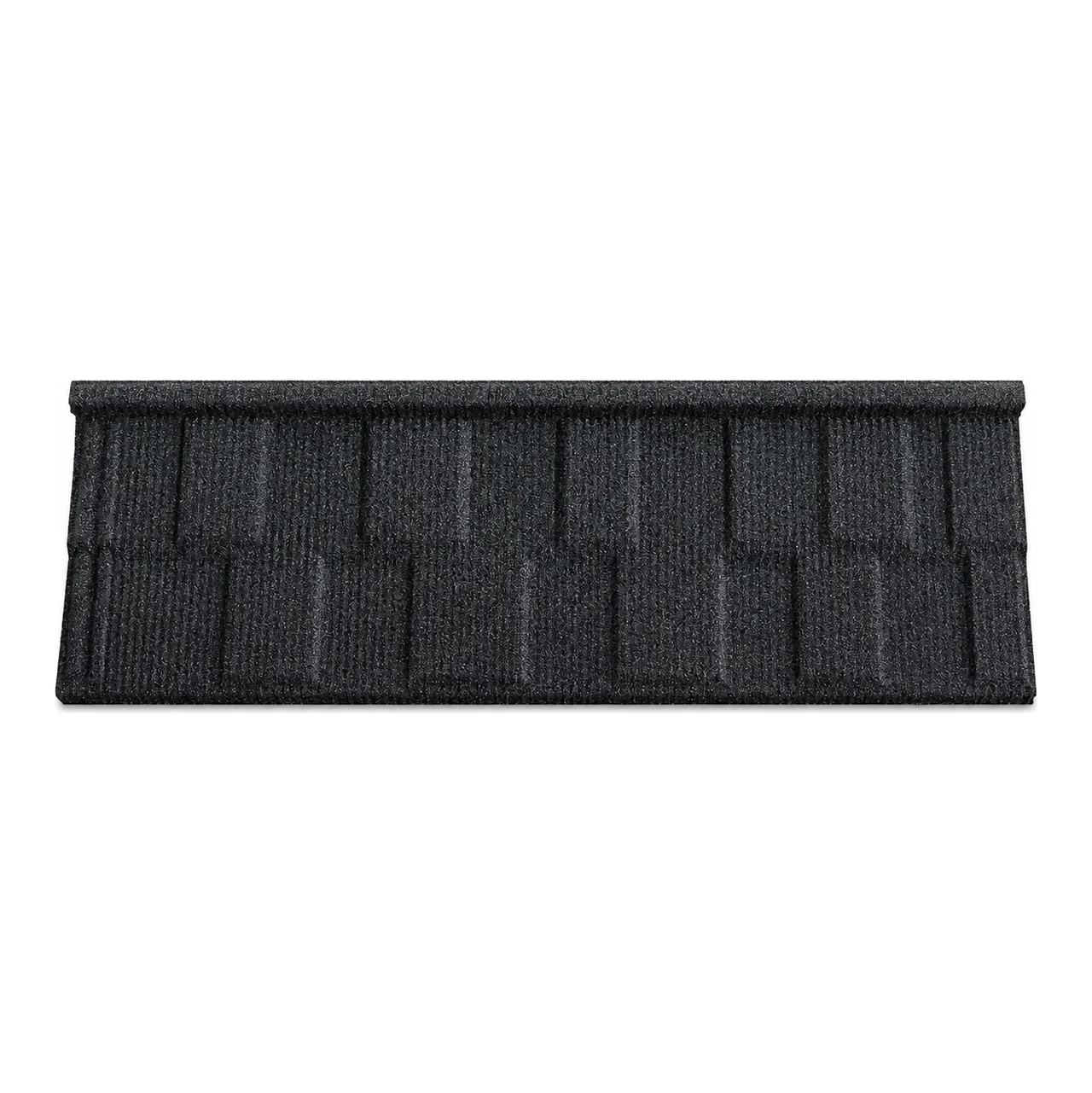

Shingle Tile
Shingle Tile features a low-profile rectangular pattern that creates the layered appearance of traditional asphalt shingles while providing the strength and durability of stone-coated metal roofing. Its clean geometric design is suitable for villas, residential buildings, commercial properties and roof renovation projects.
- Tile size
- 1340 × 420 mm
- Coverage
- 2.08 pcs/m²
- Base material
- Aluminum-zinc coated steel sheet
Product Overview
Shingle Tile features a low-profile rectangular pattern that creates the layered appearance of traditional asphalt shingles while providing the strength and durability of stone-coated metal roofing. Its clean geometric design is suitable for villas, residential buildings, commercial properties and roof renovation projects.
Short description
Shingle Tile is a lightweight stone-coated metal roofing tile with a staggered rectangular profile. Made from aluminum-zinc coated steel and finished with natural stone granules, it combines attractive shingle-style aesthetics with corrosion resistance, durability and efficient installation.
Colours
Available colours
Every profile runs in our full colour range. The swatches below are the finishes we hold stock of for this profile — other RAL and custom colours can be run to order with a minimum batch.

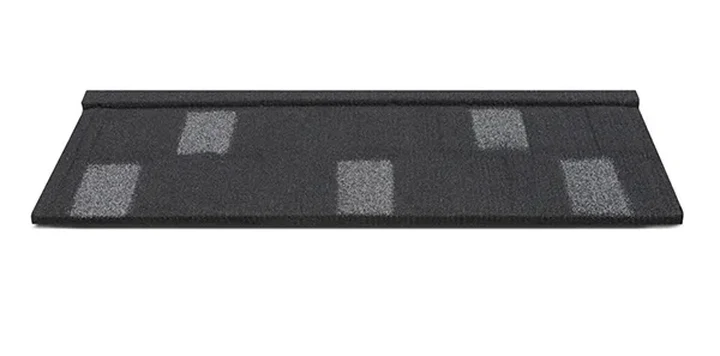

Charcoal Mix

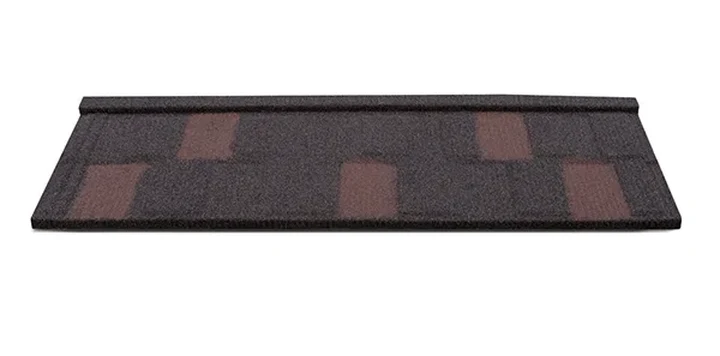

Rust Mix

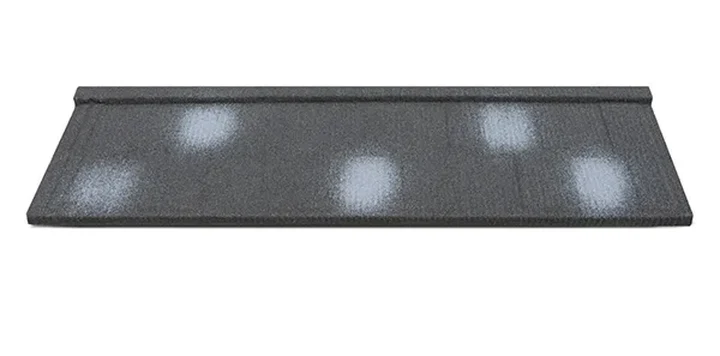

Graphite Mix

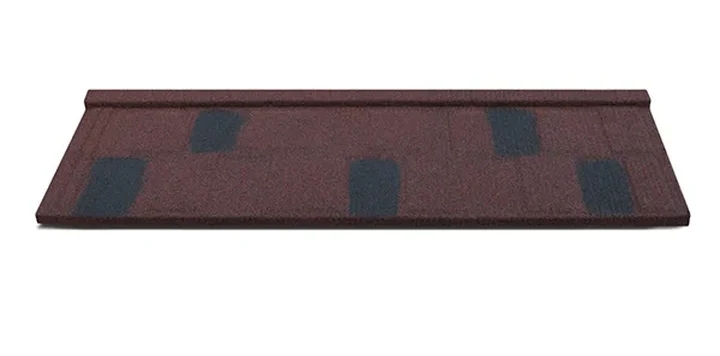

Coffee Mix

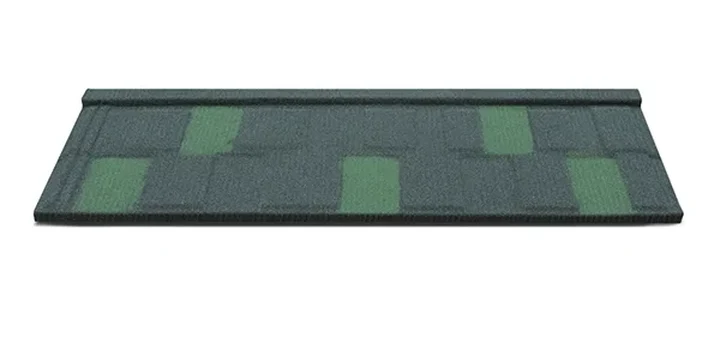

Forest Mix

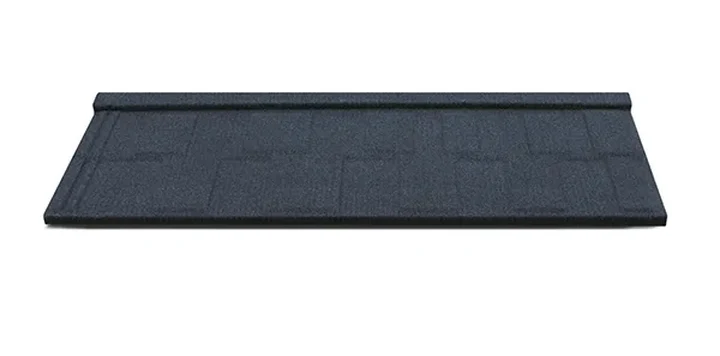

Slate Mix

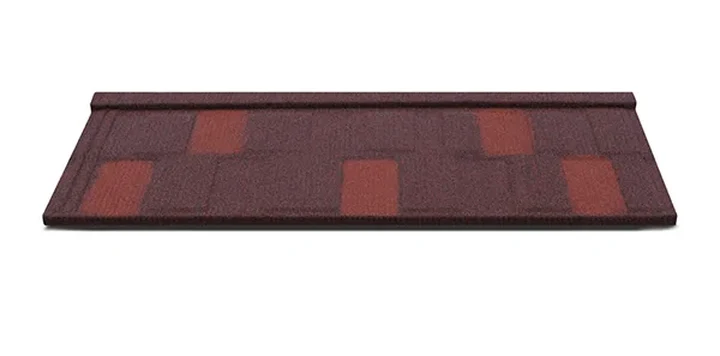

Terracotta Mix

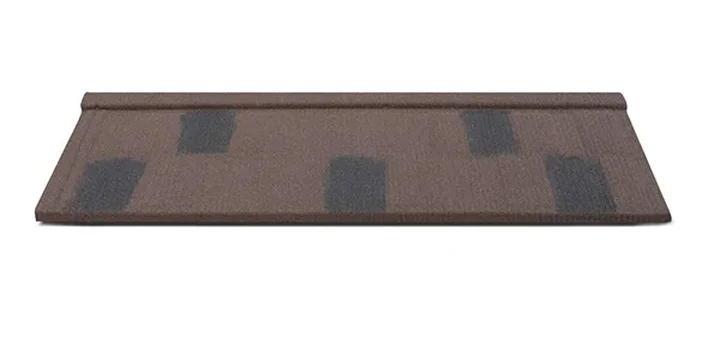

Brown Mix
JH01
JH02
JH03
JH04
JH05
JH06
JH07
JH08
JH09
JH10
JH11
JH12
JH13
JH14
JH15
JH16
Colour codes
The JH01–JH16 chips are our standard stone-coat colour range. Slight variation between batches is normal for natural stone granules. Order a free sample chip before committing to a full roof.Technical data
Specifications
| Tile Size | 1340 × 420 mm |
|---|---|
| Installed Size | 1290 × 370 mm |
| Coverage | 2.08 pcs/m² |
| Base Material | Aluminum-zinc coated steel sheet |
| Surface | Natural colored stone granules |
| Application | Villas, residences, commercial buildings and roof renovation |
Tested performance
Eight routine performance tests.
Every batch goes through the same eight checks. The figures below come from tests on our standard stone-coated panels at the China National Building Material Test Centre.
- 24 hWater resistance — no change after immersion
- 90 ℃ × 5 hHeat resistance — no change after oven ageing
- −40 ℃ × 24 hCold resistance — no change after freezing
- 48 hAlkali resistance — no change after alkali bath
- 48 hAcid resistance — no change after acid bath
- 240 hSalt spray — no change in salt spray chamber
- 20 cyclesFreeze–thaw — no change after cycling
- 1000 hArtificial weathering — no change in weatherometer
Warranty
50-year limited warranty on the coated steel substrate, 15 years against colour fade, backed by the same test reports on request.
Advantages
Key Features
Distinctive Shingle Profile
The staggered rectangular pattern creates clear visual layers and gives the roof a neat, modern appearance.
Corrosion Resistance
The aluminum-zinc coated steel substrate and protective coating help resist moisture, rust and long-term outdoor exposure.
Durable Stone-Coated Surface
The surface is covered with high-temperature sintered stone granules, providing a natural texture and reliable weather resistance.
Lightweight and Strong
Compared with traditional roofing materials, the metal structure reduces roof load while maintaining dependable strength.
Weather Resistance
The multi-layer construction helps withstand rain, sunlight, wind and changing temperatures.
Efficient Installation
Large-format panels cover more roof area, helping reduce installation time and labor costs.
Multiple Color Options
Available in black, smoky gray, brown black, wine red, terracotta, forest green and other colors shown in the brochure.
