Traditional broad-wave profile

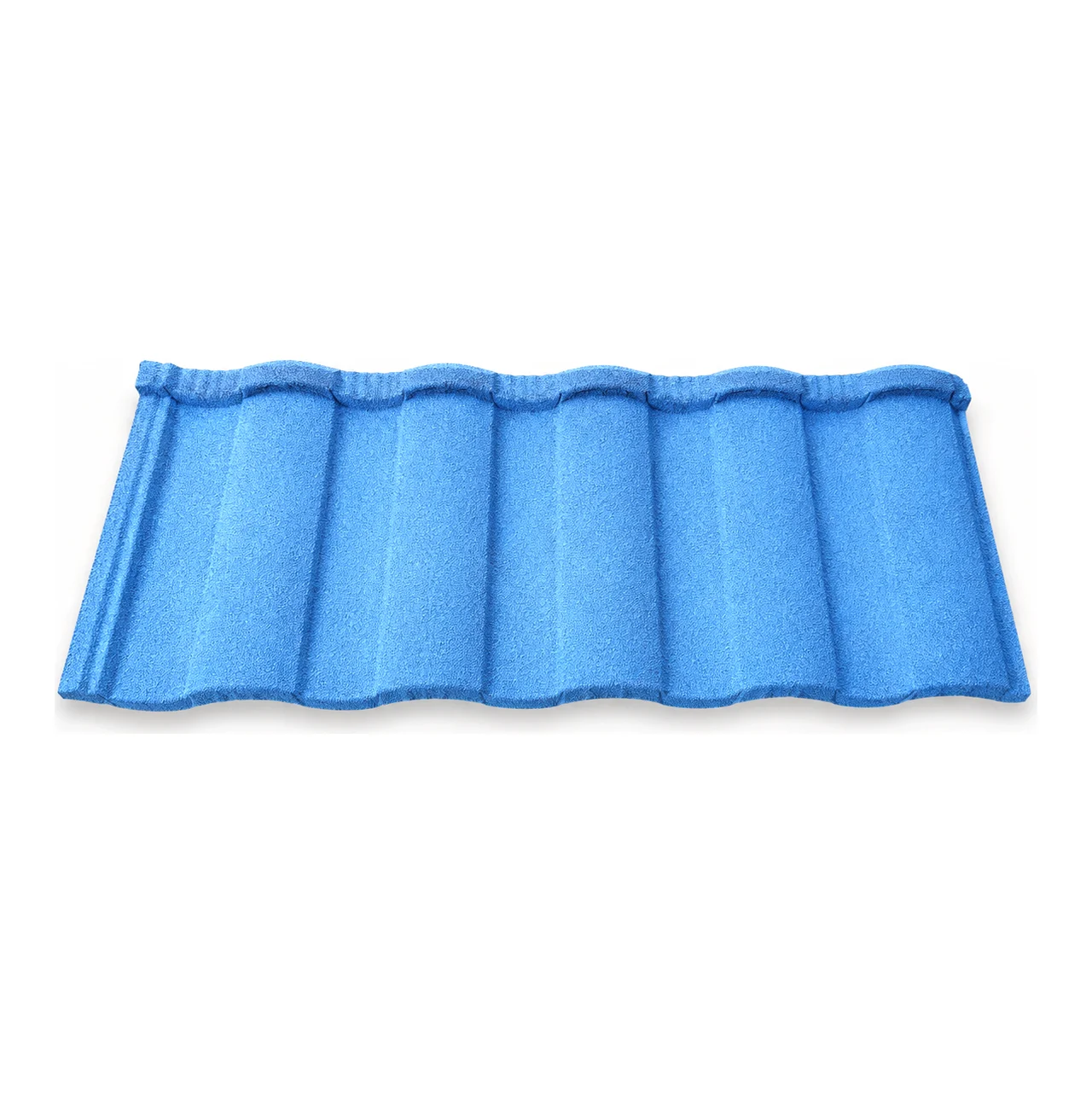

Roman Tile
Roman Tile features a broad curved profile inspired by traditional Roman roofing. Its pronounced wave design creates a strong three-dimensional appearance and clear roof lines, while the stone-coated metal construction provides lower weight and easier installation than conventional clay or concrete tiles. It is suitable for villas, residences, commercial buildings and roof renovation projects.
- Tile size
- 1340 × 420 mm
- Coverage
- 2.08 pcs/m²
- Base material
- Aluminum-zinc coated steel sheet
Product Overview
Roman Tile features a broad curved profile inspired by traditional Roman roofing. Its pronounced wave design creates a strong three-dimensional appearance and clear roof lines, while the stone-coated metal construction provides lower weight and easier installation than conventional clay or concrete tiles. It is suitable for villas, residences, commercial buildings and roof renovation projects.
Short description
Roman Tile is a lightweight stone-coated metal roofing tile with a classic broad-wave profile. Manufactured from aluminum-zinc coated steel and finished with natural stone granules, it combines traditional roof aesthetics with durability, fire resistance and efficient installation.
Colours
Available colours
Every profile runs in our full colour range. The swatches below are the finishes we hold stock of for this profile — other RAL and custom colours can be run to order with a minimum batch.

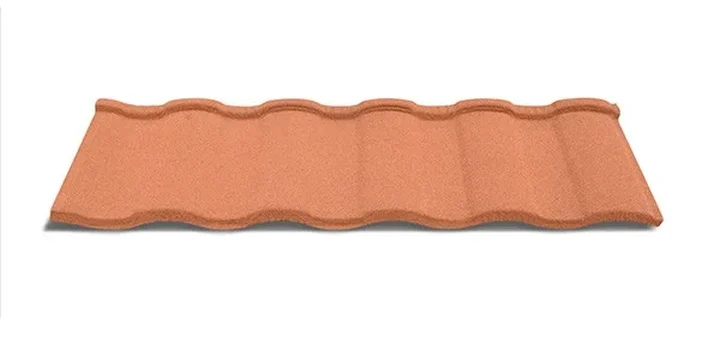

Sunset Orange

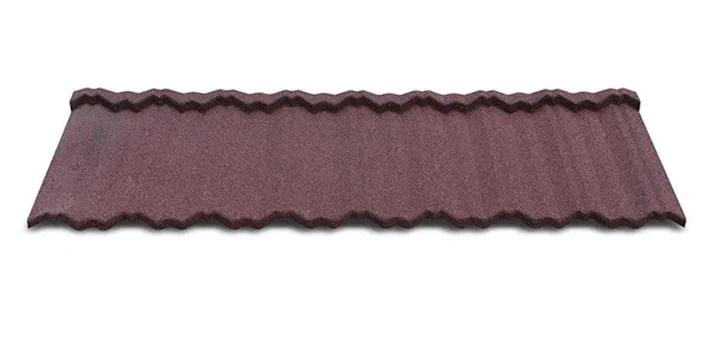

Coffee Brown

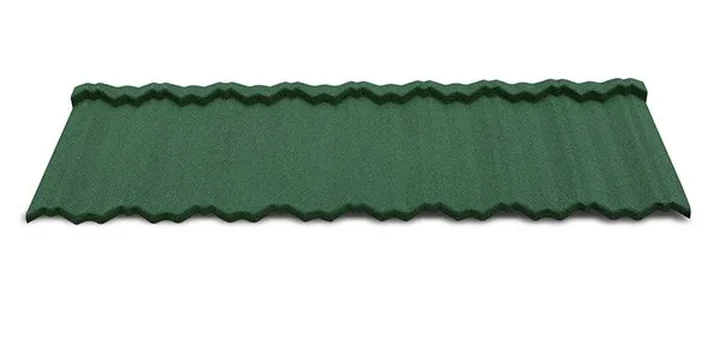

Moss Green

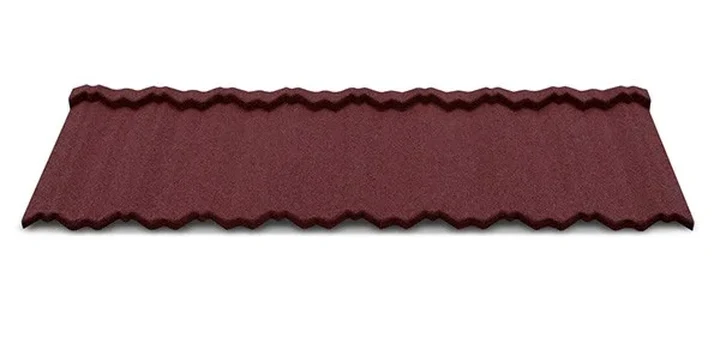

Burgundy
Terracotta

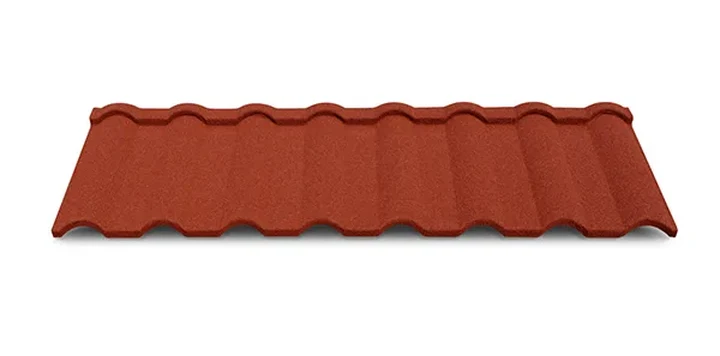

Rust Red
Terra Orange
JH01
JH02
JH03
JH04
JH05
JH06
JH07
JH08
JH09
JH10
JH11
JH12
JH13
JH14
JH15
JH16
Colour codes
The JH01–JH16 chips are our standard stone-coat colour range. Slight variation between batches is normal for natural stone granules. Order a free sample chip before committing to a full roof.Technical data
Specifications
| Tile Size | 1340 × 420 mm |
|---|---|
| Installed Size | 1290 × 370 mm |
| Coverage | 2.08 pcs/m² |
| Base Material | Aluminum-zinc coated steel sheet |
| Surface | Natural colored stone granules |
| Application | Villas, residences, commercial buildings and roof renovation |
Tested performance
Eight routine performance tests.
Every batch goes through the same eight checks. The figures below come from tests on our standard stone-coated panels at the China National Building Material Test Centre.
- 24 hWater resistance — no change after immersion
- 90 ℃ × 5 hHeat resistance — no change after oven ageing
- −40 ℃ × 24 hCold resistance — no change after freezing
- 48 hAlkali resistance — no change after alkali bath
- 48 hAcid resistance — no change after acid bath
- 240 hSalt spray — no change in salt spray chamber
- 20 cyclesFreeze–thaw — no change after cycling
- 1000 hArtificial weathering — no change in weatherometer
Warranty
50-year limited warranty on the coated steel substrate, 15 years against colour fade, backed by the same test reports on request.
Advantages
Key Features
Traditional Roman Profile
The broad curved waves create a classic Mediterranean-style roof appearance with strong depth and clearly defined layers.
Lightweight and Strong
The metal base reduces the overall roof load while providing reliable structural strength.
Fire and Flame Retardant
Because the main substrate is metal, Roman Tile offers better fire resistance than many traditional roofing materials.
Corrosion Resistance
The aluminum-zinc coated steel base and protective coating help resist moisture, rust and long-term outdoor exposure.
Durable Stone-Coated Surface
Natural stone granules provide a textured finish, improve decorative performance and help maintain long-term color stability.
Efficient Installation
Large tile panels cover more roof area, helping reduce installation time, labor requirements and construction costs.
Multiple Color Options
Roman Tile is available in sky blue, terracotta, wine red, smoky gray, black, brown black and other colors shown in the brochure.
