Updated Bond profile

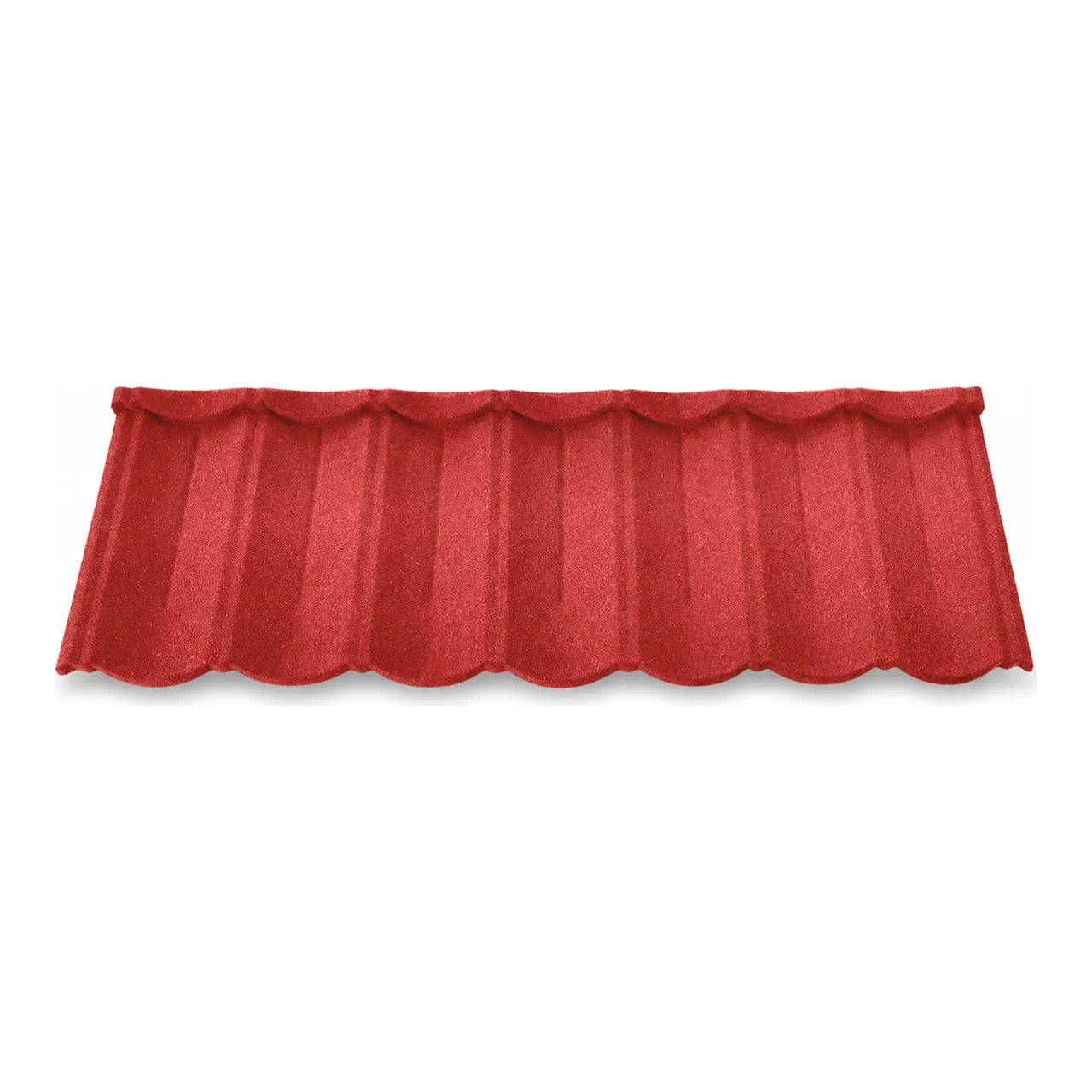

New Bond Tile

New Bond Tile is an updated stone-coated metal roofing profile with broader vertical channels and a cleaner, more defined wave structure than the traditional Bond Tile. Its balanced curved shape creates a neat layered roof appearance while maintaining the lightweight strength, corrosion resistance and durability of metal roofing. It is suitable for villas, residential buildings, commercial properties and roof renovation projects.

Tile size: 1340 × 420 mm
Coverage: 2.08 pcs/m²
Base material: Aluminum-zinc coated steel sheet

View specifications

Product Overview

Short description

New Bond Tile is a lightweight stone-coated metal roofing tile with an updated curved profile and clearly defined vertical channels. Manufactured from aluminum-zinc coated steel and finished with natural stone granules, it offers modern roof aesthetics, reliable durability and efficient installation.

Colours

Available colours

Every profile runs in our full colour range. The swatches below are the finishes we hold stock of for this profile — other RAL and custom colours can be run to order with a minimum batch.

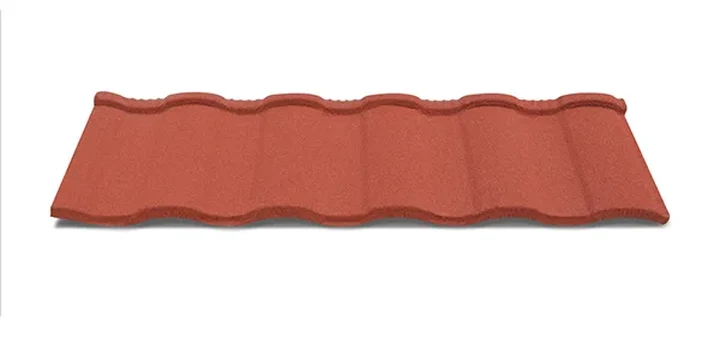

Terracotta

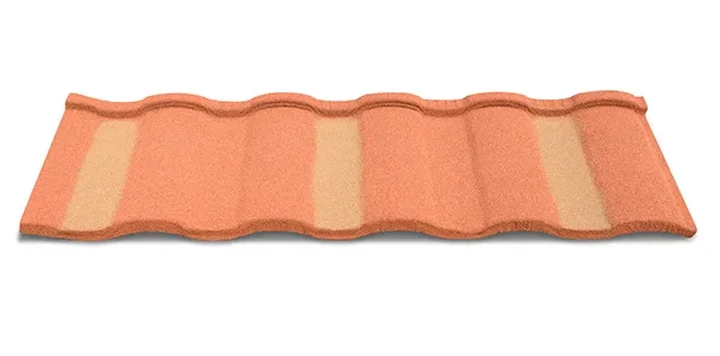

Terra Orange

JH01
JH02
JH03
JH04
JH05
JH06
JH07
JH08
JH09
JH10
JH11
JH12
JH13
JH14
JH15
JH16

Colour codes

The JH01–JH16 chips are our standard stone-coat colour range. Slight variation between batches is normal for natural stone granules. Order a free sample chip before committing to a full roof.

Technical data

Specifications

Tile Size	1340 × 420 mm
Installed Size	1290 × 370 mm
Coverage	2.08 pcs/m²
Base Material	Aluminum-zinc coated steel sheet
Surface	Natural colored stone granules
Application	Villas, residences, commercial buildings and roof renovation

Tested performance

Eight routine performance tests.

Every batch goes through the same eight checks. The figures below come from tests on our standard stone-coated panels at the China National Building Material Test Centre.

24 hWater resistance — no change after immersion
90 ℃ × 5 hHeat resistance — no change after oven ageing
−40 ℃ × 24 hCold resistance — no change after freezing
48 hAlkali resistance — no change after alkali bath
48 hAcid resistance — no change after acid bath
240 hSalt spray — no change in salt spray chamber
20 cyclesFreeze–thaw — no change after cycling
1000 hArtificial weathering — no change in weatherometer

Warranty

50-year limited warranty on the coated steel substrate, 15 years against colour fade, backed by the same test reports on request.

Advantages

Key Features

Updated Bond Profile
The wider vertical sections and clearly defined curved edges create a cleaner and more modern roof appearance.
Strong Three-Dimensional Effect
The regular raised channels and shallow wave structure produce neat roof lines with visible depth and layering.
Lightweight and Strong
The metal substrate reduces roof load compared with traditional clay or concrete tiles while maintaining dependable structural strength.
Corrosion Resistance
The aluminum-zinc coated steel base and protective surface layers help resist moisture, rust and long-term outdoor exposure.
Durable Stone-Coated Surface
Natural stone granules provide a textured decorative finish and help improve weather resistance and long-term color stability.
Wind and Weather Resistance
The overlapping installation structure helps protect the roof against wind, rain, sunlight and temperature changes.
Efficient Installation
Large-format panels cover more roof area, helping reduce installation time, labor requirements and construction costs.
Multiple Color Options
New Bond Tile can be supplied in terracotta, wine red, black, smoky gray, brown black, beige red and other colors shown in the brochure.
